„SZT. LÁSZLÓ” MOTORWAY - BRIDGE OVER THE DANUBE

Back

Location:

Principal:National Motorways Ltd, Hungarian Bridge Construction Consortium

Year:2002

Revenue:

Download:„SZT. LÁSZLÓ” MOTORWAY - BRIDGE OVER THE DANUBE

Technical data:

Total length of the bridge: 917 m (together with the river bridge designed by others)
Spans of the flood plain bridge: 3 x 65,5 m
Width of the flood plain bridge 2,95 m + 10,0 m + 1,05 m.

Services:

Elaboration of the tender invitation materials
Design for Approval
Execution designs
Technical supervision
As-built designs, Instructions for the Operator

„SZT. LÁSZLÓ” MOTORWAY - BRIDGE OVER THE DANUBE

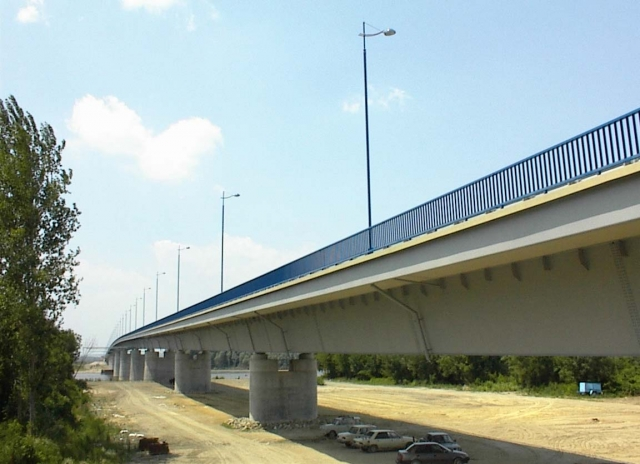

Bridge structure: on both floodplains: steel box support bridge acting with rc plate, connected to the river bridge at both ends.
Innovative features of the bridge:
− The innovative structure of the rc deck slab and its dimensioning allowed to omit completely the moving of the supports, time- and work consuming activity.
− The longitudinal U ribs of the web plates and the soffit slab are not connected to the transverse girders spaced 4m from each other (suitability verified by finite element calculation and tests in 1:1)
− For the in-site assembling procedure of the steel structure temporary supports were used, replaceable by crane in 1 piece and not needing separate foundation work.
These yokes type REM 500 assembled with temporary supports produced in GDR were used also at the construction of other bridges.
