MOTORWAY - BRIDGE OVER THE MURA RIVER

Back

Location:

Principal:Nemzeti Autópálya Rt., NIF Zrt.

Year:2009

Revenue:

Download:MOTORWAY - BRIDGE OVER THE MURA RIVER

Technical data:

Total length of the bridge: 216 m
Spans: 36 m + 3x48 m + 36 m
Width of the bridge: 1,47 + 12,5 + 0,6 + 0,8 m gap + 0,6 + 12,5 + 1,47 = 29,94 m.

Services:

Design for Approval
Execution designs
Technical supervision
As-built Design, Instructions for the Operator

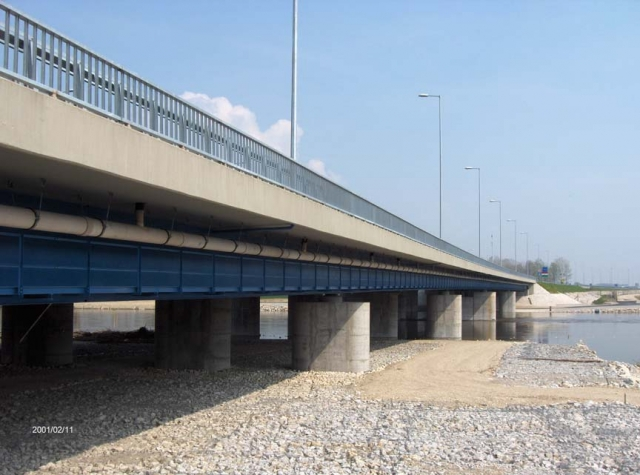

MOTORWAY - BRIDGE OVER THE MURA RIVER

Bridge structure: steel structured bridge acting with 1-1 rc plate by road carriageway, with 2-2 steel boxes by bridge.
Special features of the bridge:
− The designs were elaborated by UVATERV according to the Hungarian standards, the bridge was constructed by  Croatian contractors.
− The substructures of the bridge are supported by vertical and inclined driven rc piles, prefabricated with centrifugal  technology.
− The innovative structure of the rc deck slab and the method of its dimensioning allowed to omit completely the relocation/moving of the supports and the prestressings, time- and work consuming activities.
The deck slab was concreted without application of interim temporary supports. The deck slab was concreted without the application of interim temporary supports.
− The contractor mounted the steel main girders on the riverside and launched them to the final place in longitudinal direction, by means of temporary pylons mounted on the top of the superstructure, without using temporary supports.
